Rigid pocket air filters are a type of high-efficiency air filter used in HVAC (Heating, Ventilation, and Air Conditioning) systems, industrial ventilation, and other air filtration applications. These filters are designed to capture fine particles and contaminants from the air, and they offer several advantages over traditional flat panel filters.
Products Description

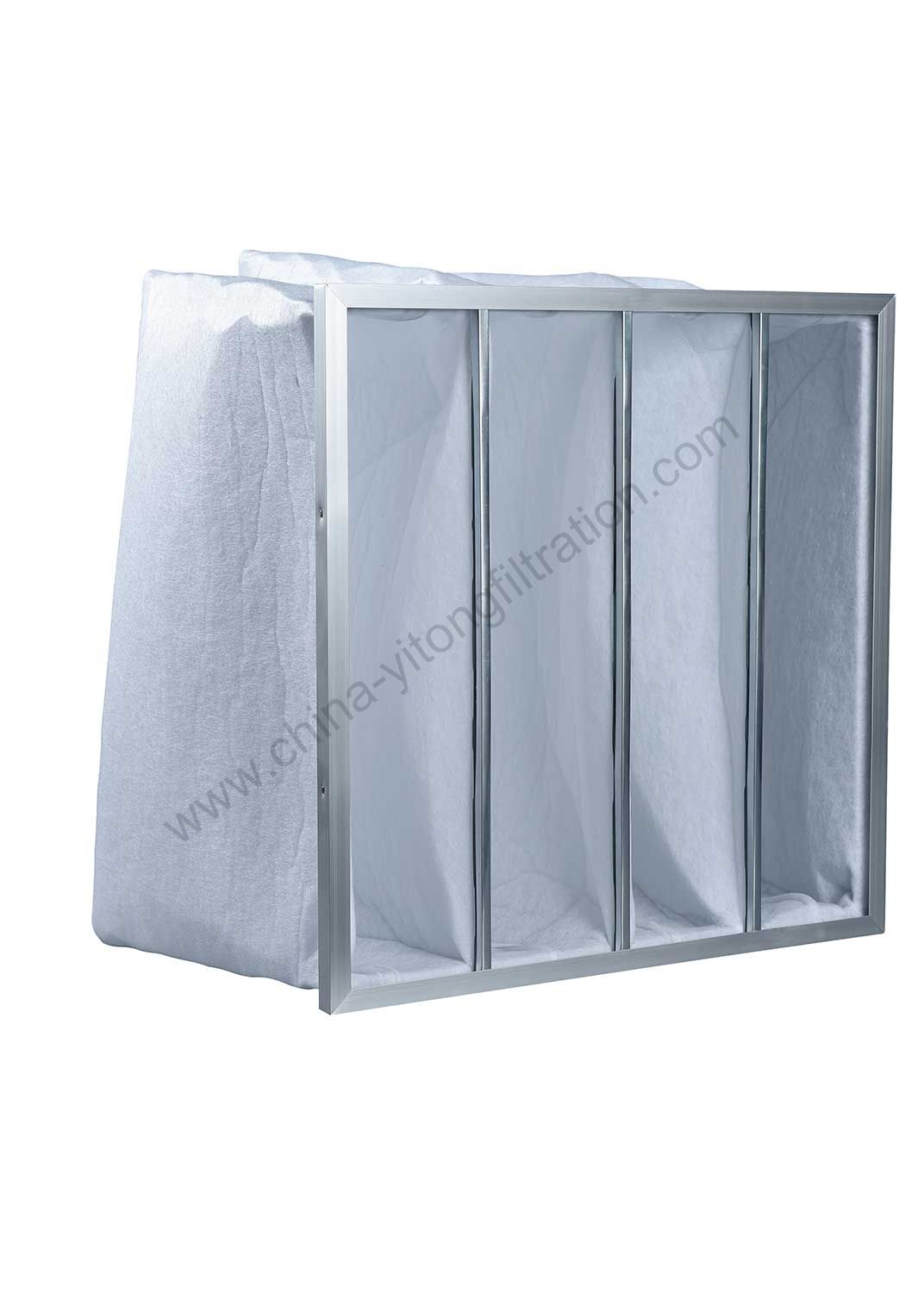

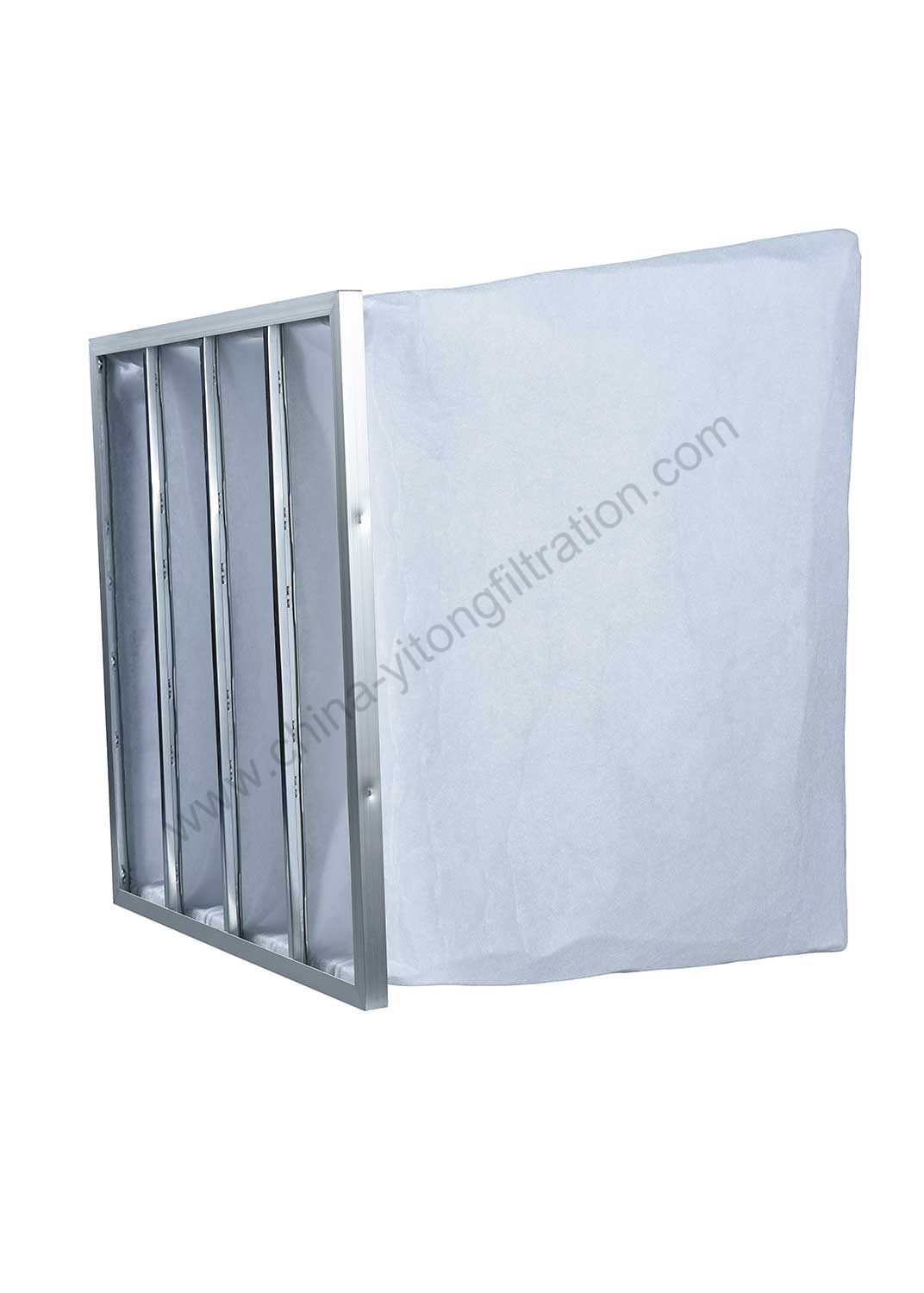

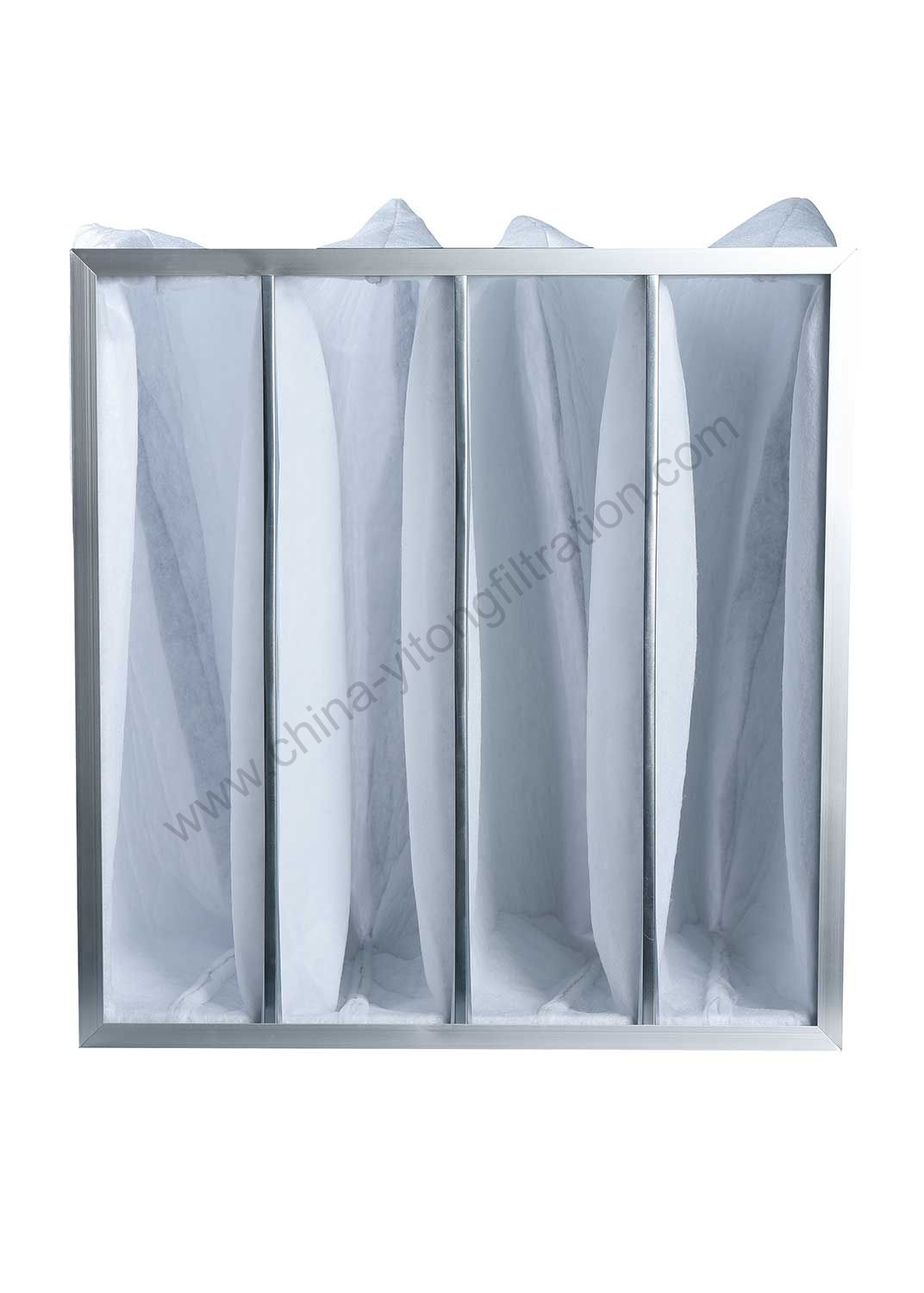

Type: Pocket (rigid)
Frame material: Plastic, 25mm
Filter media: Synthetic fibre
Filter class: G3/G4/M5/M6/F7
Initial resistance: ~50% of glass fibre
Standard size: 594 x 594mm, 490 x 592mm
Standard depth: 381/610mm
Product Features
Benefits of production:
1. Low pressure drop
2. Large capacity
3. V-shaped bag
Here are some key characteristics and uses of rigid pocket air filters:
1. **High Efficiency Filtration:** Rigid pocket filters are known for their high filtration efficiency. They are designed to capture fine particles, including dust, pollen, pet dander, mold spores, and other allergens. They are also effective at removing some smaller contaminants, such as fine dust and smoke particles.
2. **Extended Surface Area:** Unlike flat panel filters, rigid pocket filters have a larger surface area due to their pocket-like design. This extended surface area allows for more efficient particle capture and longer filter life.
3. **Construction:** Rigid pocket filters are constructed with a frame or header and multiple individual pockets, each containing a filter media. The pockets are typically made of synthetic materials, such as nonwoven polypropylene, and are supported by a rigid frame, often made of metal or plastic.
4. **Variety of Filter Media:** Rigid pocket filters are available with a variety of filter media options, including synthetic filter media, fiberglass, and specialized media designed to target specific contaminants. The choice of filter media depends on the specific application and filtration requirements.
5. **Custom Sizing:** These filters can be custom-sized to fit various HVAC systems and industrial ventilation units, making them versatile and suitable for a wide range of applications.
6. **Low Pressure Drop:** Rigid pocket filters are designed to offer low resistance to airflow, which minimizes the energy consumption of HVAC systems. This low pressure drop ensures that the system operates efficiently.
7. **Quality Air for Sensitive Environments:** Rigid pocket filters are often used in environments where air quality is crucial, such as hospitals, laboratories, cleanrooms, and manufacturing facilities. They help maintain a high level of indoor air quality by removing fine particles and contaminants.
8. **Reduced Maintenance:** The extended surface area and high-efficiency design of these filters mean they require less frequent replacement and maintenance compared to standard flat panel filters. However, regular inspection and replacement are still necessary to maintain filter efficiency.
9. **Environmentally Friendly:** Some rigid pocket filters are designed to be environmentally friendly, as they can be recycled or incinerated safely after use.
10. **Multiple Efficiency Ratings:** These filters are available in various efficiency ratings, typically categorized by the Minimum Efficiency Reporting Value (MERV) or the High-Efficiency Particulate Air (HEPA) classification. The choice of rating depends on the specific air quality requirements.
In summary, rigid pocket air filters are highly efficient filters used to capture fine particles and contaminants in HVAC systems and industrial ventilation. Their extended surface area and low pressure drop make them ideal for environments where air quality is critical. Proper maintenance and filter replacement are essential to ensure optimal performance and air quality.
