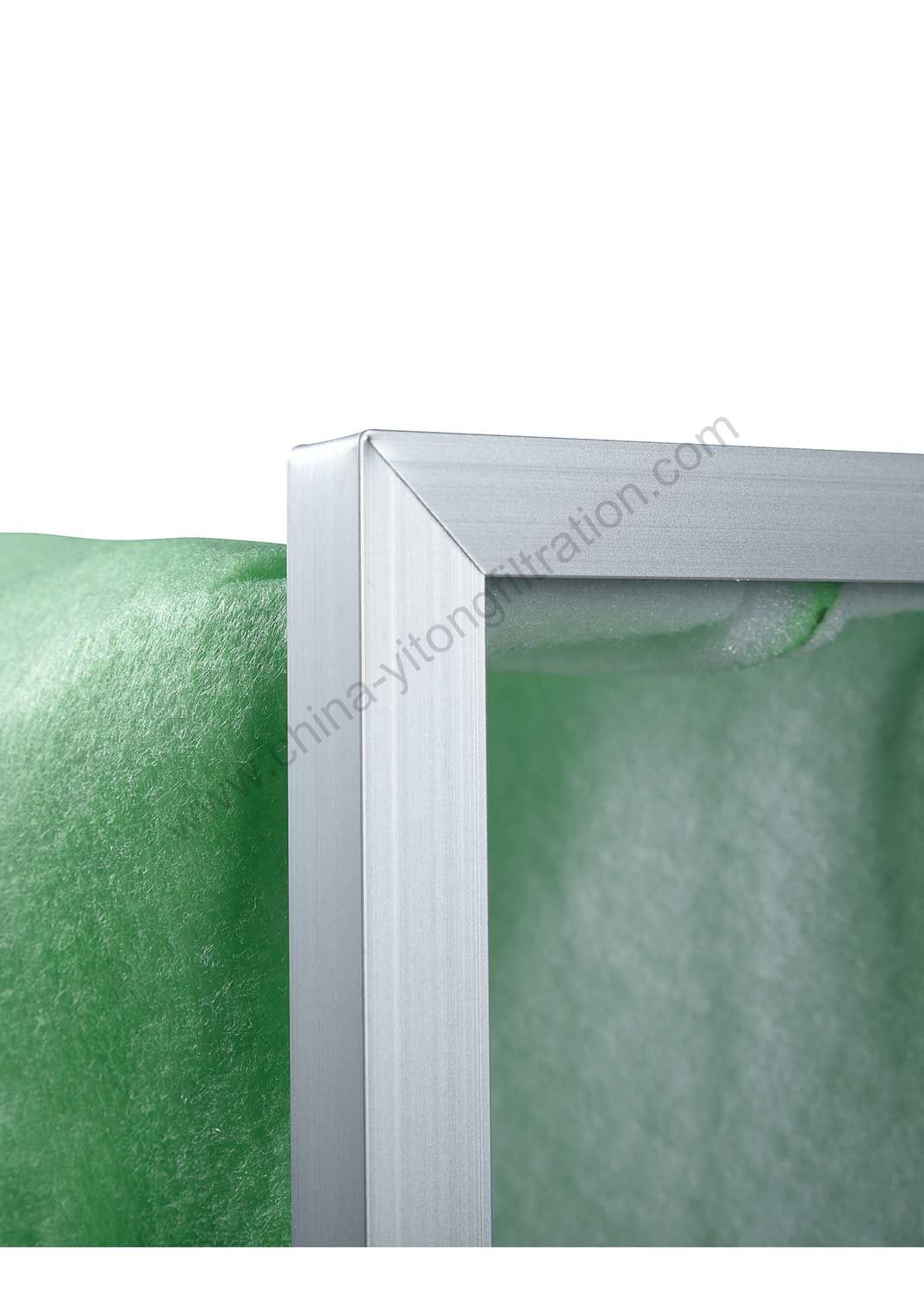

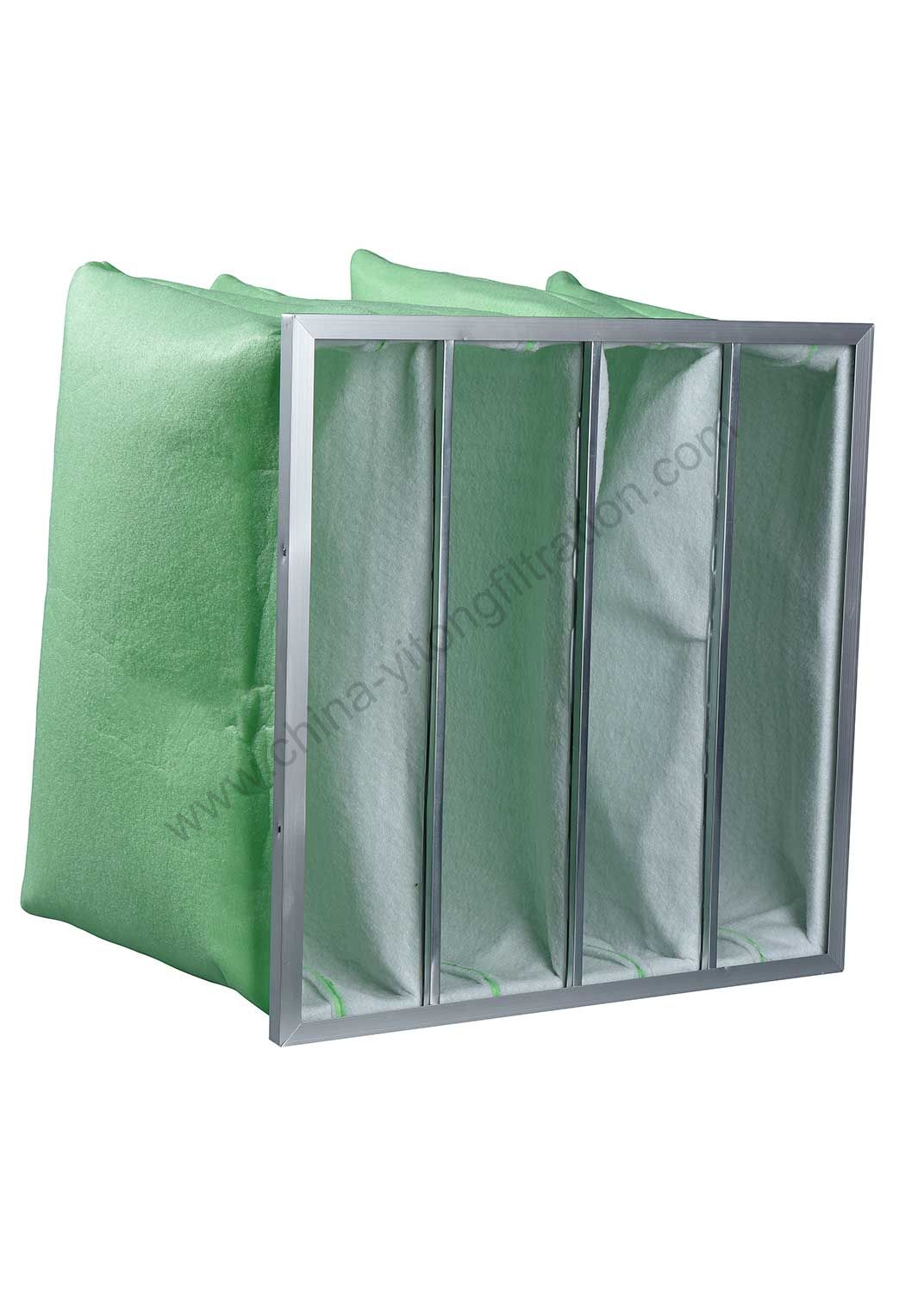

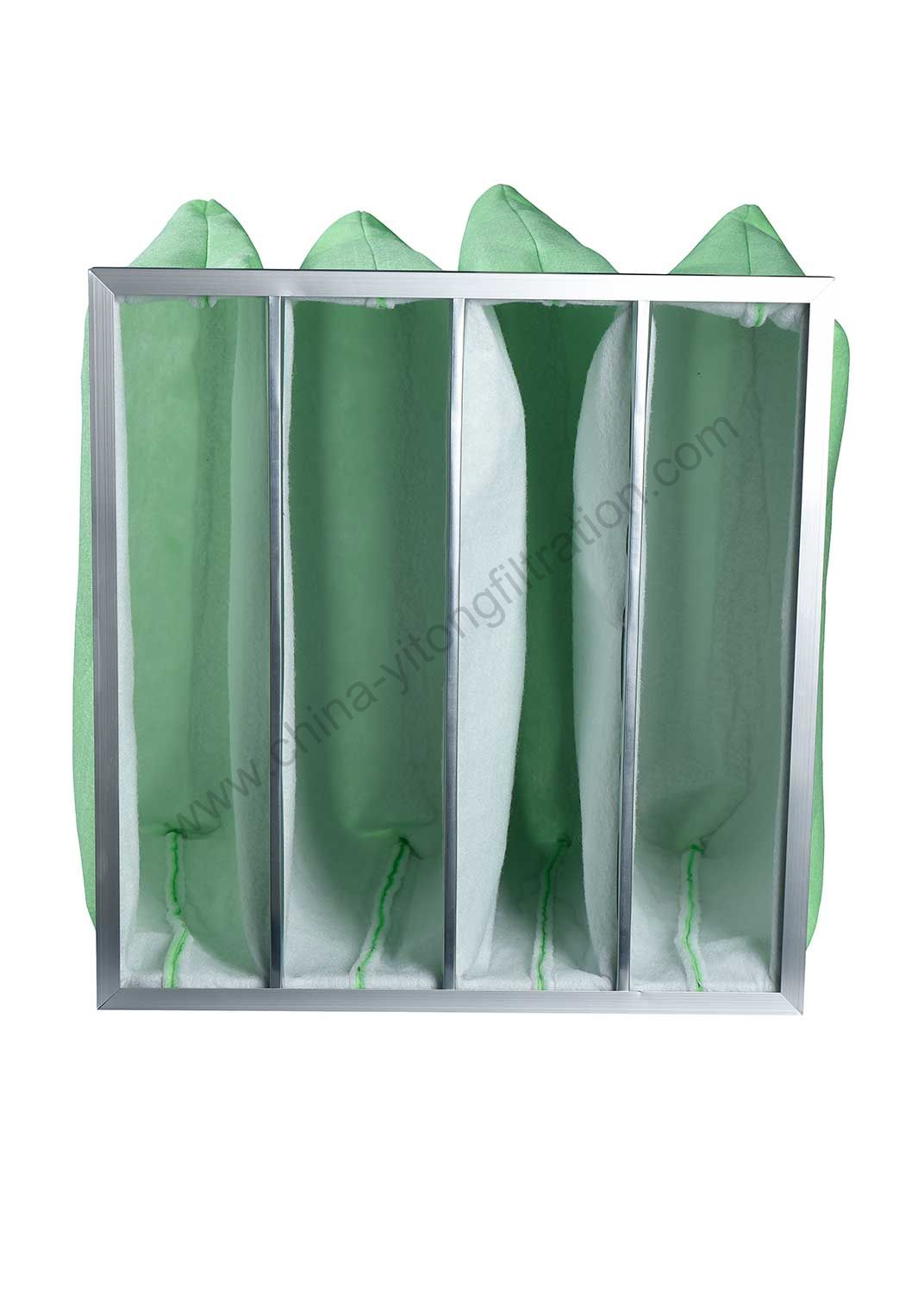

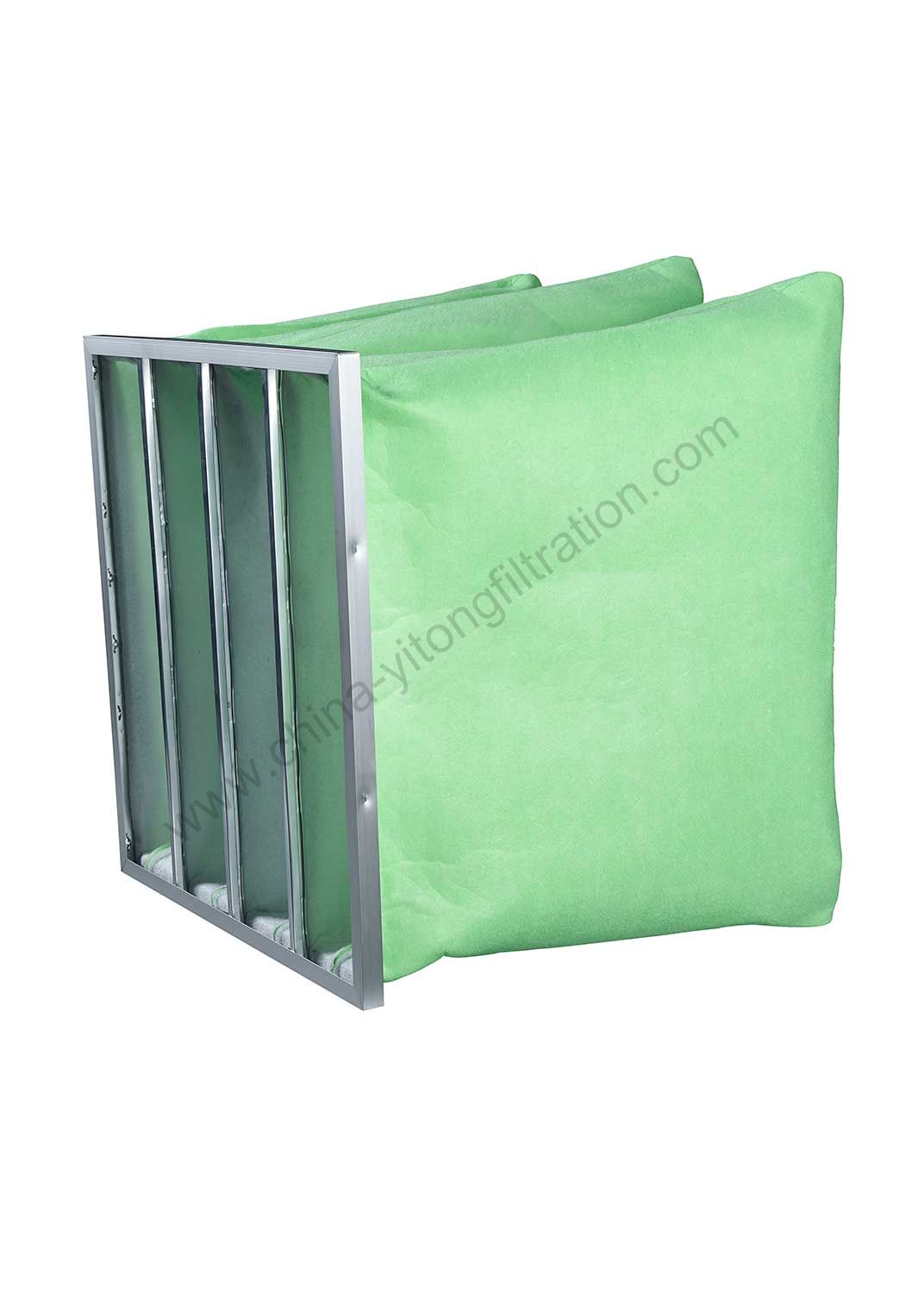

Coarse dust bag filters, also known as baghouse filters or dust collector bags, are air filtration devices designed to capture and remove larger particles and coarse dust from industrial and environmental air streams. These filters are commonly used in a wide range of applications, from woodworking and metalworking to chemical processing and cement production.
Products Description
Type: Panel, Pleated and Pocket.
Filter frame: Paper, ABS, Galvanized sheet, extruded aluminium, stainless steel
Media: Chemical fiber, stainless steel mesh, nylon mesh
Filter class: G1-G4
Clean air filters pressure drop: 30-50Pa
Standard sizes: Standard depth: 10/21/46/95mm
Customized products prefered.
Product Features
※Large filter area, High dust retention capacity
※Washable, long lifetime
| Model | Type | Frame thickness | Filter class | Size (W*H*D*P) | Frame material |
| YTCX | DS (Pocket) | 10 20 46 90 | G1 G2 G3 G4 | 592*592*46 287*592*46 490*592*46 | Paper(P) ABS (ABS) Galvanized sheet (DX) Extruded aluminium (L) stainless steel (SS) |
Fresh air conditioning system with clean room, mid-range filtering of new fan units;
Secondary or final filtering of the central air-conditioning system;
Filtration of air purification equipment as the main part;
Pre-filtration of high-efficiency filter to complete the job.
