Oct. 14, 2024
Sintered porous metal filter tubes are a game-changing solution in modern filtration systems, known for their durability, efficiency, and versatility. These tubes have become indispensable in industries ranging from chemical processing to aerospace. In this blog, we’ll explore how these filters work, their materials and manufacturing techniques, applications, and key advantages. Let’s dive in!
Sintered porous metal filter tubes are made from powdered metals fused together using heat. This process creates a network of interconnected pores, allowing these filters to trap contaminants while permitting the flow of gases or liquids. Their unique structure supports both depth filtration (trapping particles within the filter body) and surface filtration (catching particles on the outer layer).
1. Filter Technology Overview
A key advantage of sintered porous metal filters is their filtration efficiency. With customizable pore size distribution, these filters can meet the most demanding filtration needs, ensuring superior particle retention. Whether you need microfiltration (removal of microscopic contaminants) or ultrafiltration (for even finer filtration), these tubes offer excellent performance.
Here’s a quick look at different filtration types:
Depth filtration: Particles are captured within the filter material for extended use.
Surface filtration: Particles are retained on the filter surface, ideal for applications requiring easy cleaning.
Gas filtration: Used to remove contaminants from gases like compressed air or natural gas.
Liquid filtration: Effective in separating particles from water, chemicals, and other fluids.
The performance of a sintered porous metal filter tube depends heavily on the material used. Some of the most popular materials include:
Stainless steel filter: Known for its corrosion resistance and mechanical strength, making it ideal for water treatment and chemical filtration.
Titanium filter: A lightweight option offering high-temperature resistance, commonly used in aerospace filtration and pharmaceutical filtration.
Sintered metal mesh: This material features multiple layers of woven metal mesh, providing durability and effective filtration for high-pressure applications.
Sintering Process
The sintering process involves compressing powdered metals and heating them just below their melting point. This causes the particles to bond, creating a porous structure ideal for filtration.
Powder Metallurgy
This method involves shaping metal powders into tubes and sintering them for added strength. Powder metallurgy ensures precise control over the pore size distribution, making the filters suitable for a variety of filtration applications.
Laser Cutting and Perforated Tubes
Laser cutting enables the precise formation of custom filters, while perforated tubes provide structural support. These techniques allow manufacturers to create custom pore size filters to meet specific industry needs.
Thanks to their versatility, sintered porous metal filters find applications across a wide range of industries:
Chemical filtration: Remove contaminants from chemicals used in manufacturing processes.
Water treatment: Filter impurities and microorganisms from water supplies.
Pharmaceutical filtration: Ensure the purity of medical products and maintain strict hygiene standards.
Food and beverage processing: Maintain product quality by filtering particles from liquids like wine, beer, and juices.
Gas diffusion: Control gas flow and filter particles in industrial gas systems.
Petrochemical industry: Withstand harsh environments for reliable filtration of oils and chemicals.
Aerospace filtration: Protect sensitive equipment from contaminants at high altitudes and temperatures.
Hydraulic filters: Prevent wear and tear by removing particles from hydraulic fluids.
Corrosion Resistance
Materials like stainless steel and titanium resist corrosion, even in harsh environments, ensuring a long lifespan.
High-Temperature Resistance
These filters can operate effectively at extreme temperatures, making them suitable for demanding industries like aerospace and petrochemicals.
Pore Size Distribution and Permeability
The pore size distribution can be customized to meet specific filtration needs. High permeability allows fluid or gas to pass through while filtering out contaminants.
Mechanical Strength
Their solid construction gives them mechanical strength, allowing them to withstand high pressures without breaking or deforming.
Backwashable and Regenerable Filters
Sintered metal filters can be cleaned and reused through backwashing, reducing operational costs. They are also regenerable filters, meaning they can be restored to near-original performance even after extensive use.

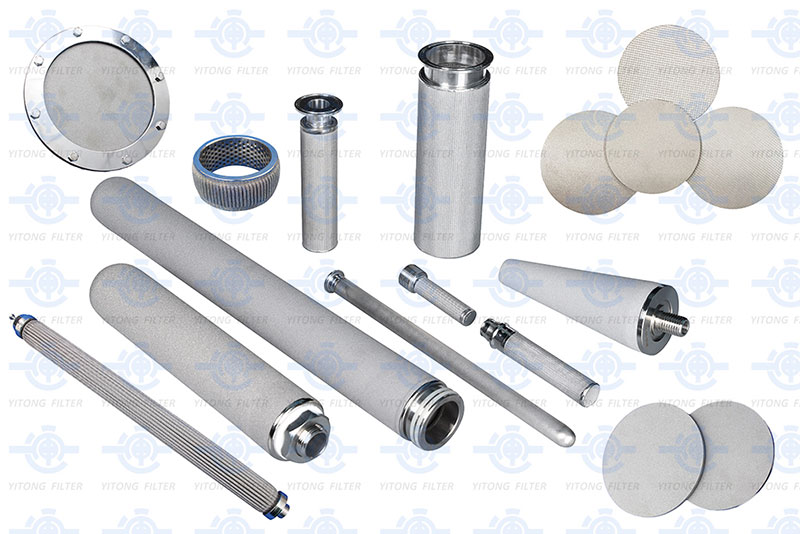

There are several types of sintered porous metal filter tubes designed to meet different industrial needs:
Cylindrical filter tube: A standard design used in most filtration systems.
Multi-layer filter tube: Offers enhanced filtration efficiency by combining multiple layers of metal mesh.
Custom pore size filters: Tailored to specific filtration needs for niche applications.
Metal foam filter: Lightweight filters with excellent gas diffusion properties.
Pleated filter element: Increases the surface area for more efficient filtration without adding bulk.
Sintered metal filters often require complementary components to function properly:
Filter housings: Provide structural support and protect the filter element.
Filter cartridges: Replaceable units that hold the sintered filter element.
End caps: Secure the filter tube in place within the housing.
O-rings and gaskets: Ensure a tight seal, preventing leaks and maintaining system integrity.
Conclusion
Sintered porous metal filter tubes are an essential component in today’s filtration technology, offering superior performance, durability, and flexibility. From chemical filtration and gas diffusion to aerospace applications, these filters meet the most demanding industry requirements. With their corrosion resistance, high-temperature tolerance, and customizable designs, they are a valuable investment for industries aiming to optimize their filtration processes.
Whether you need a stainless steel filter for water treatment or a titanium filter for pharmaceutical applications, sintered porous metal filters provide a reliable, long-lasting solution. With advancements in powder metallurgy and laser cutting, these filters are becoming more precise and efficient, helping industries improve productivity and sustainability.
By choosing the right sintered porous metal filter tube, companies can enhance system efficiency, reduce downtime, and achieve higher filtration quality—making them a key part of modern industrial operations.
This comprehensive guide highlights the versatility of sintered porous metal filters and why they are becoming a preferred solution across industries. If you’re looking to upgrade your filtration system, these filters are definitely worth considering!
