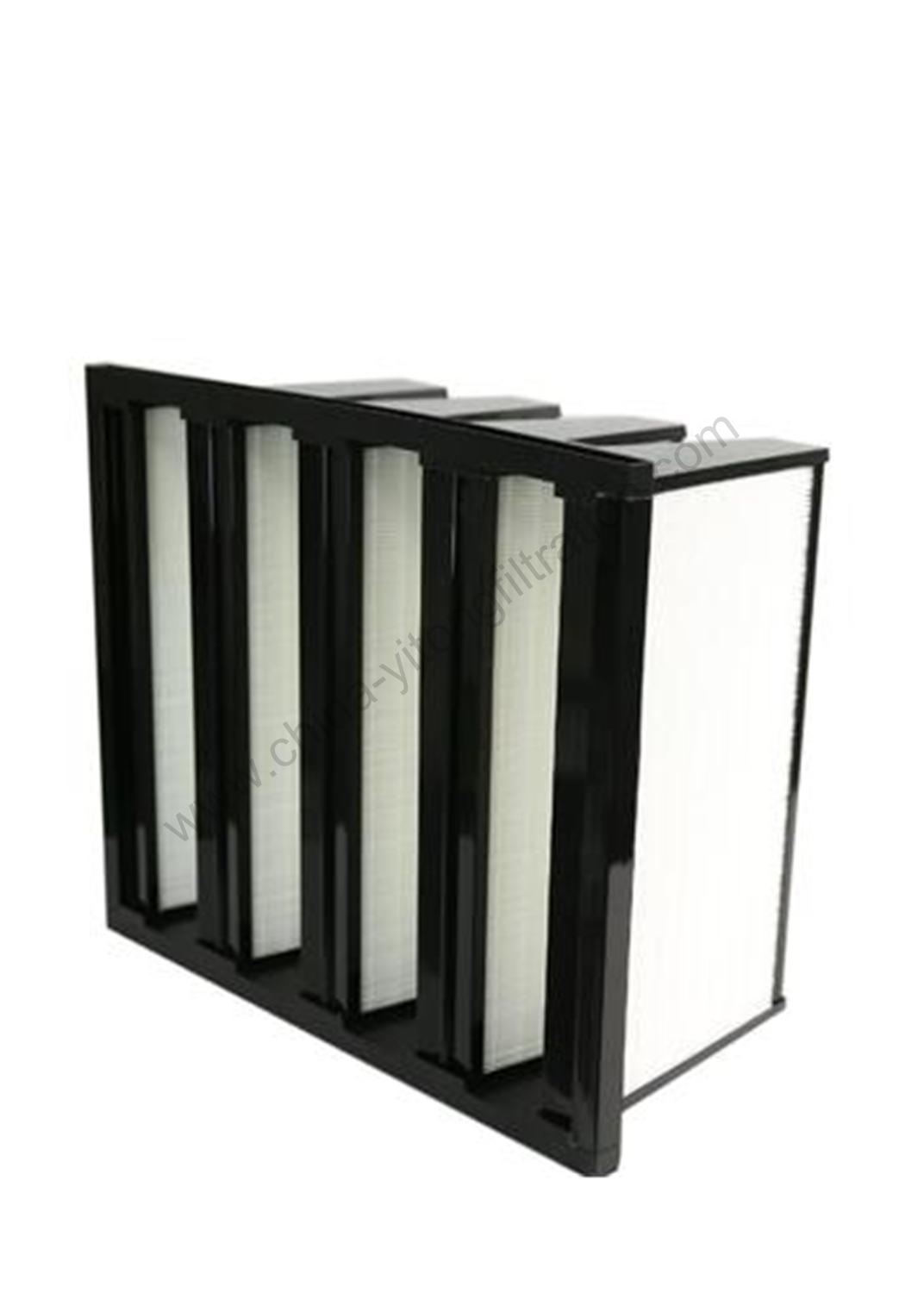

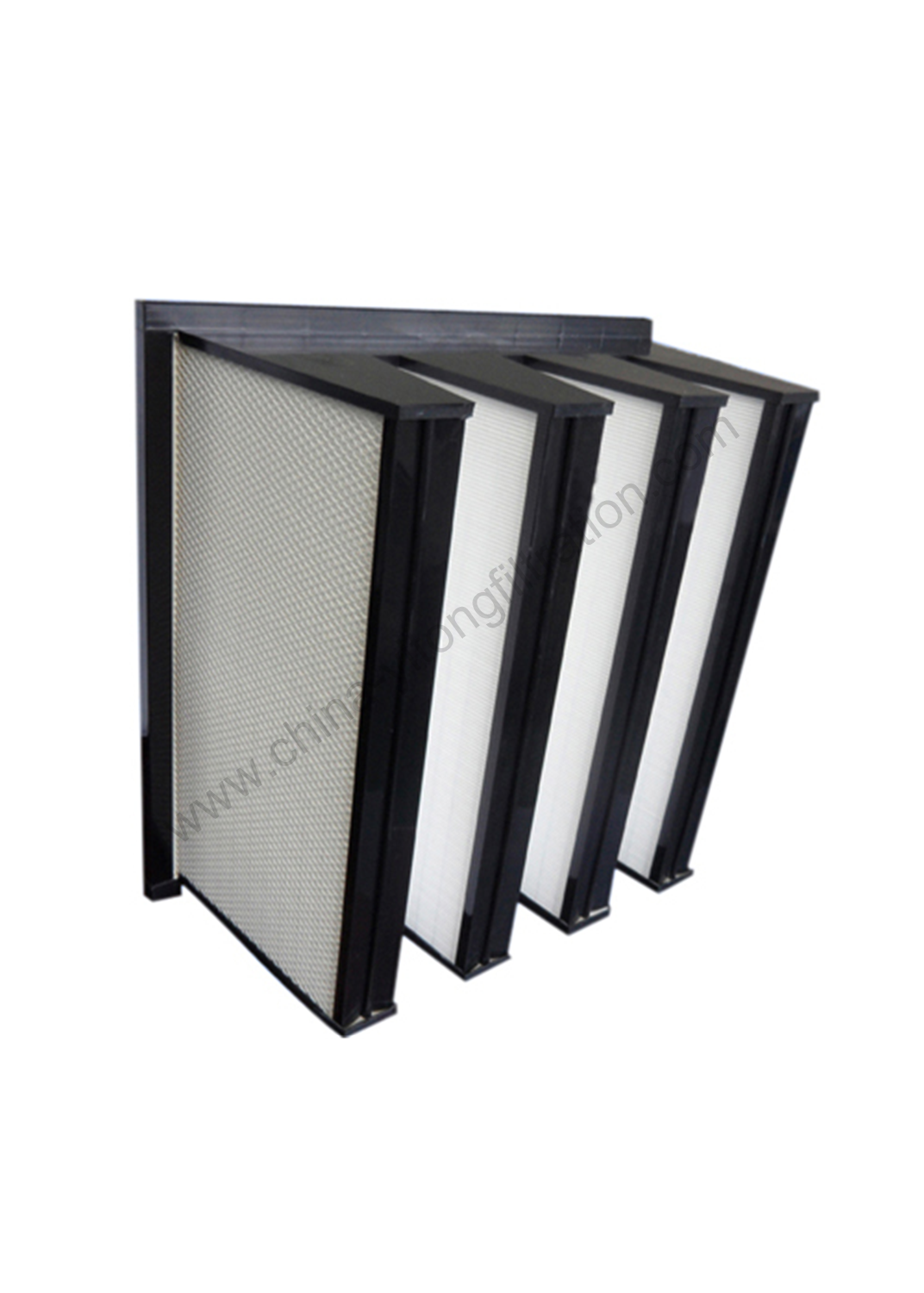

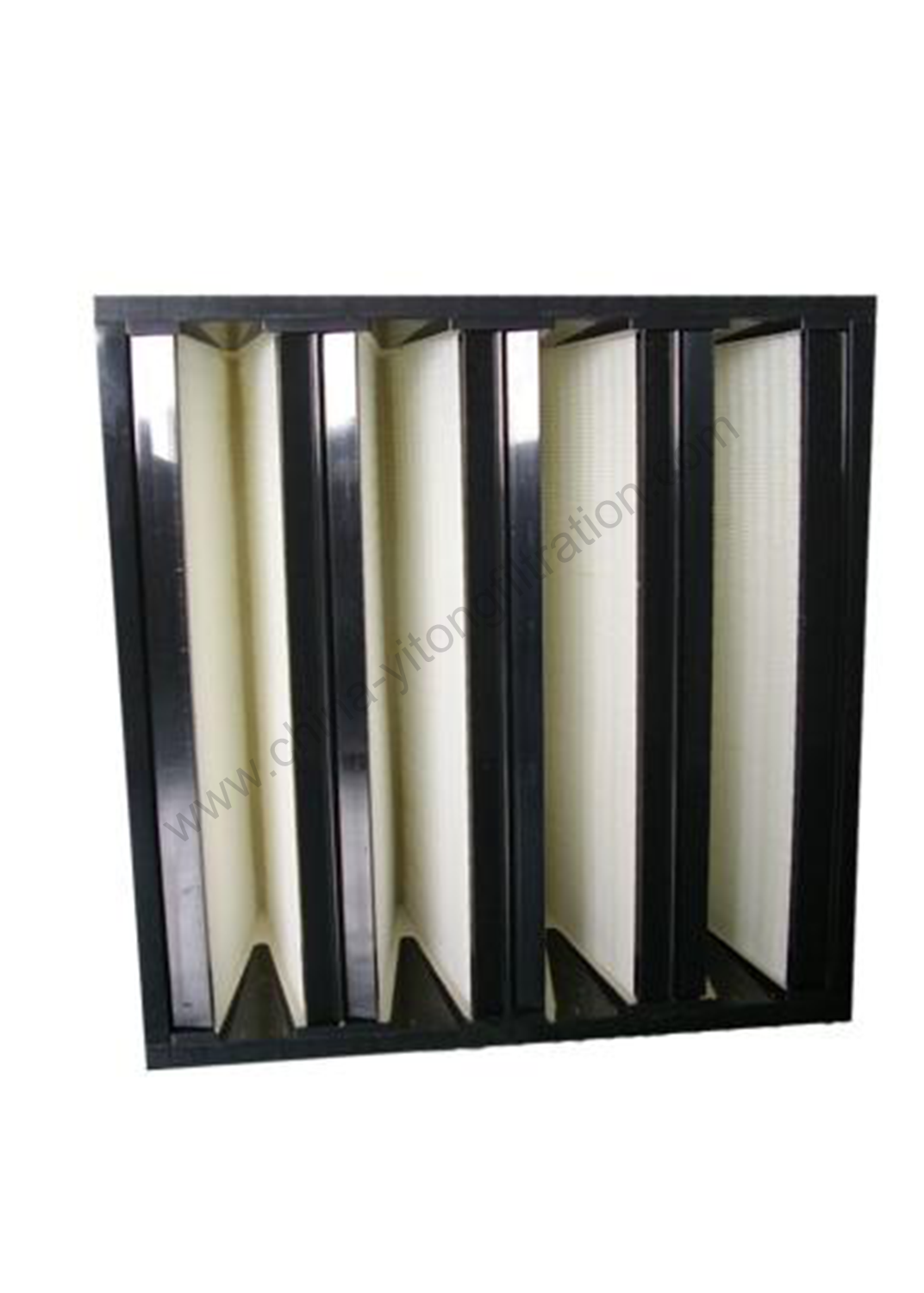

YTV series v type combined air filter is mainly used for the terminal filtration of air conditioning unit and the efficient pre-protection.
YTV series v type combined air filter is mainly used for the terminal filtration of air conditioning unit and the efficient pre-protection. I It has advantages of high efficiency, large air volume, convenient installation, low equipment operation cost.
1. Framework: plastic, galvanized sheet.
2. Filter material: polypropylene filter paper, glass fiber filter paper.
3. Segment material: thermosol.
4. Sealant: polyurethane.
Widely used in optical electronics, biological pharmaceutical, medical laboratory, food and beverage, semiconductor, precision instruments and other industries.
| Dimension(mm) | Filtration efficiency(%) | Primal resistance（Pa） | Rated air volume（m³/h） |
| 592*592*292 | F8 | ≤80 | 3400 |
| 592*287*592 | F8 | ≤80 | 1700 |
| 592*592*292 | F9 | ≤130 | 3400 |
| 592*287*592 | F9 | ≤130 | 1700 |
| 592*592*292 | H10 | ≤180 | 3400 |
| 592*287*592 | H10 | ≤180 | 1700 |
| Note: the above dimensions are normal size, which can be customized according to requests and drawings. | |||
