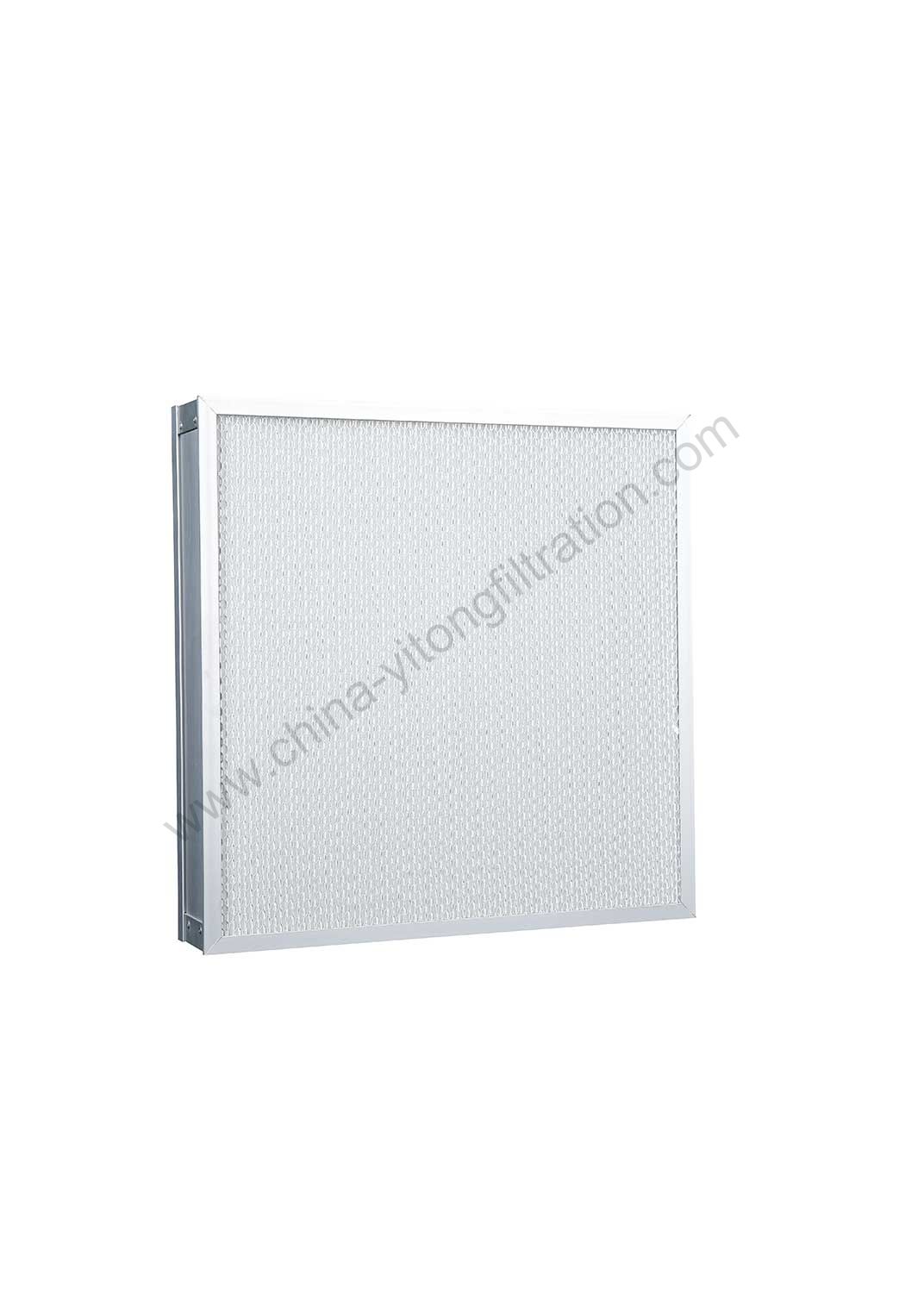

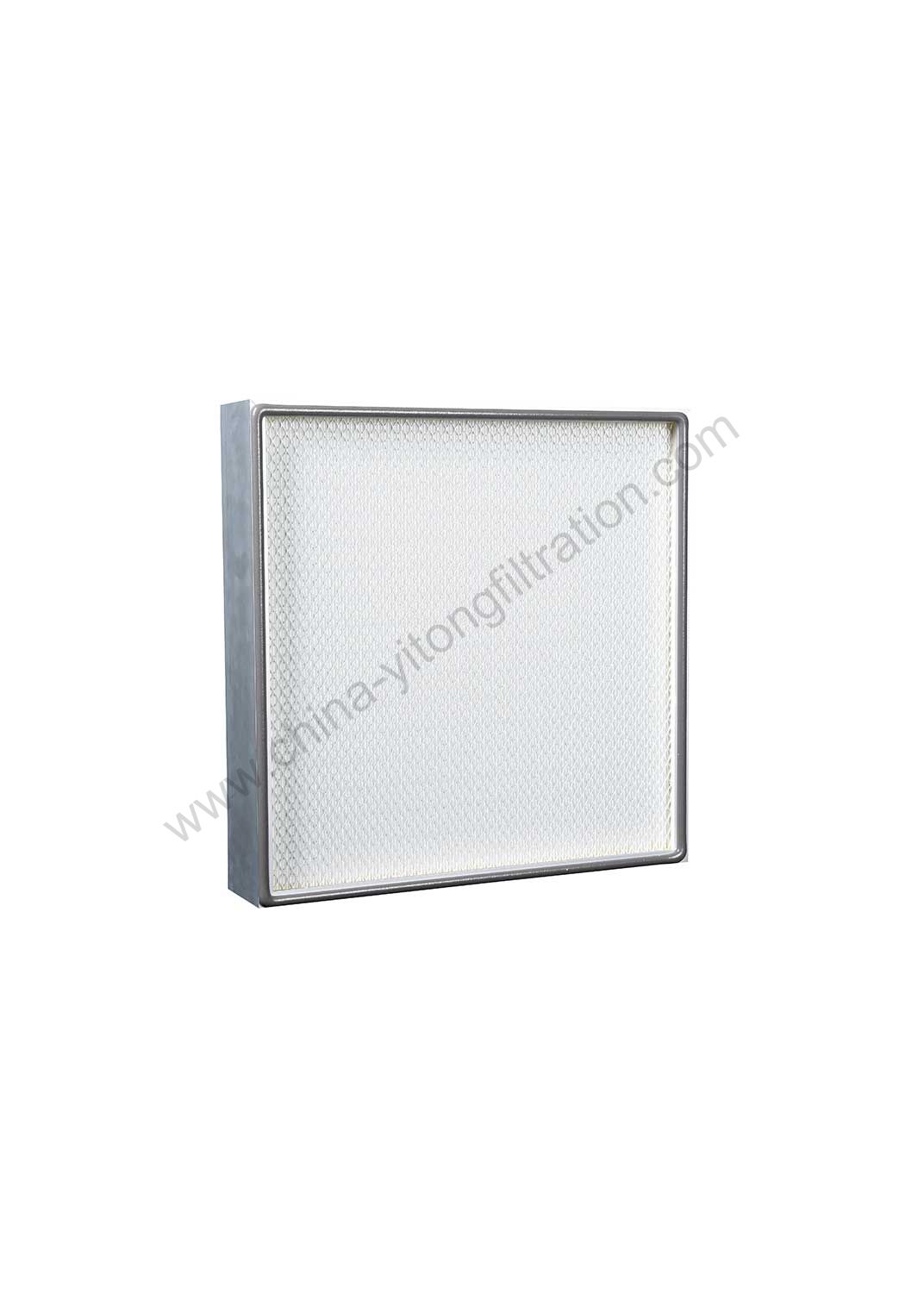

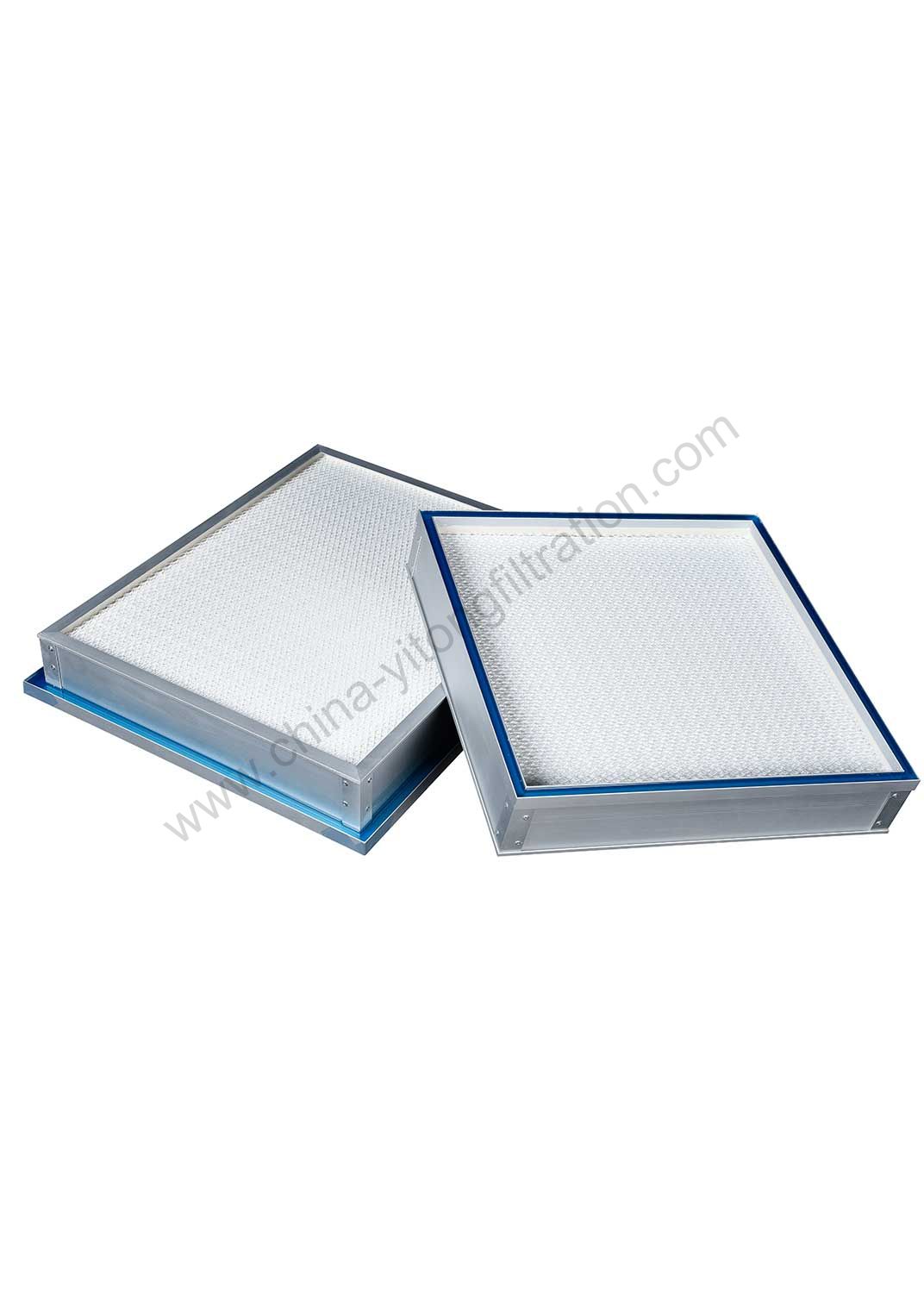

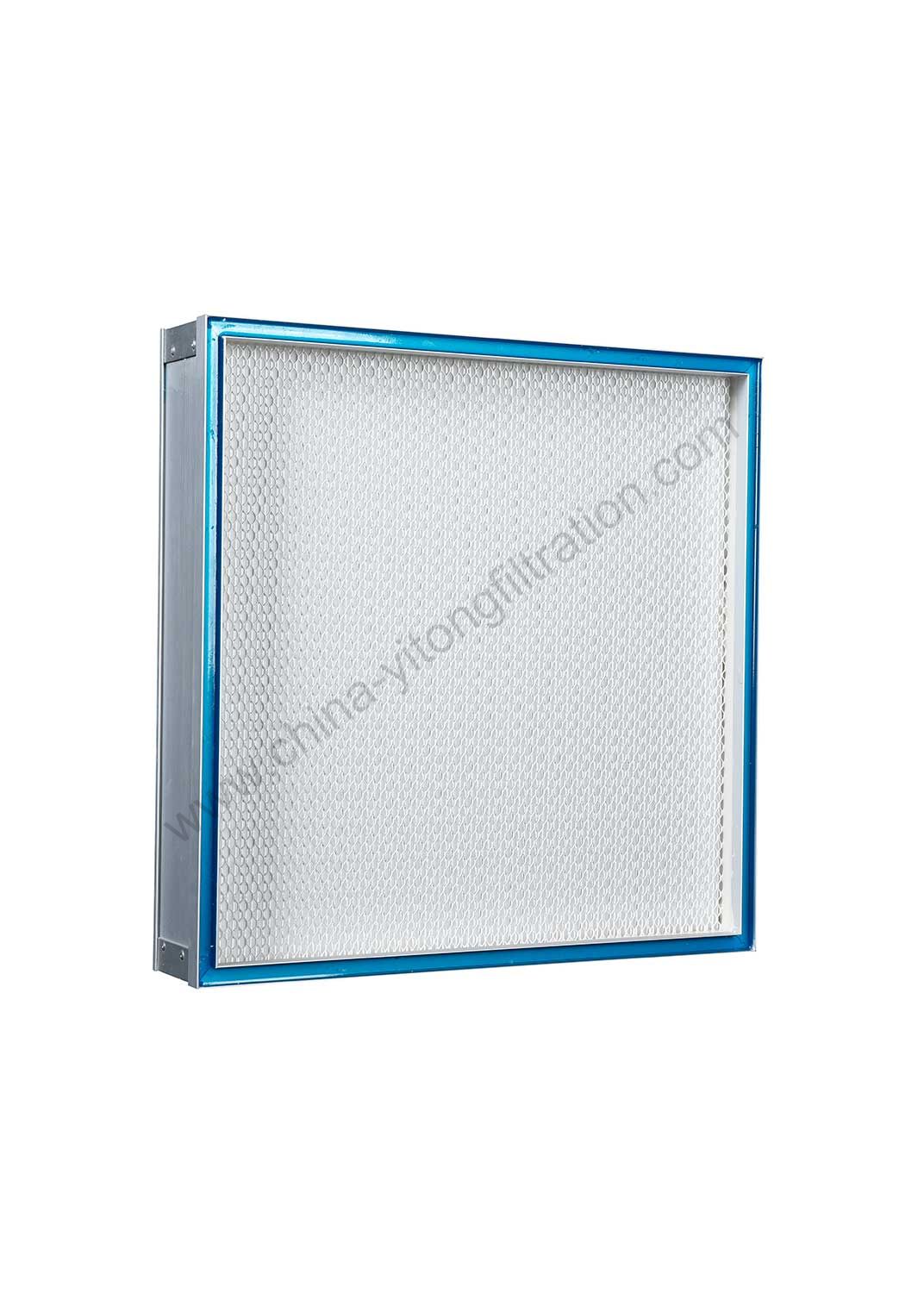

Mini-Pleat Panel HEPA Filters are high-efficiency particulate air filters designed to capture and remove a wide range of airborne particles. These filters consist of a dense arrangement of pleats, which significantly increases the filter's surface area and enhances its particle retention capacity.
The mini-pleat design ensures uniform airflow and maximizes filter efficiency while minimizing pressure drop. These filters are commonly used in cleanrooms, healthcare facilities, laboratories, and various industrial settings where maintaining air quality is crucial.
Their ability to trap microscopic particles, including dust, pollen, mold, bacteria, and even viruses, makes Mini-Pleat Panel HEPA Filters indispensable in environments requiring stringent air quality control. They are available in various sizes and efficiencies, offering flexible options to suit specific filtration needs.
Efficient and reliable, Mini-Pleat Panel HEPA Filters play a vital role in ensuring clean and healthy indoor air environments across diverse industries.
Detailed information:
Type: Mini-pleat, Compact
Frame material: SUS304, Wood, Anodised extruded aluminum
Filter media: PTFE (Polytetrafluoroethylene) membrane
Gasket: PU gasket on both sides
Filter class: HEPA filters (H13/H14), ULPA filters (U15~U17)
Initial resistance: 50~110 Pa
Standard size: 320 x 320mm, 450 x 450mm, 595 x 595mm
Standard depth: 46/70/90/110/150/220/292mm
Material and Operation Conditions
| Media | Micro glass fifiber/PTFE |
| Frame | Extruded aluminum/ Folding aluminum/ Galvanized steel/ Stainless steel/ MDF |
| Sealant | Double-component polyurethane glue |
| Gasket | PU endless gasket /EVA/ EPDM |
| Separator | Hot melt bead |
| Optional aluminum frame thickness (mm) | 46，50，69，75，78，80，90，96，100，110，120，150（(Customized design is available)） |
| Max. Temperature | 70℃ |
| Max. Humidity | 100% |
Technical datasheet
| Model | Type | Material | Size（mm）（WxHxD） | Air flow（m³/h） | Initial pressure(≤Pa) | Filteration area（m²） | Velocity（m/s） | Filteration grade（EN1822-4） | ||||||||
| YTGX | No separator（W） | Fiber glass （BX） | 610x305x69 | 500 | 90 | 4.92 | 0.75 | H14 | ||||||||
| （PTFE） | 610x610x69 | 1000 | 90 | 9.84 | 0.75 | H14 | ||||||||||
| 915x610x69 | 1500 | 90 | 14.77 | 0.75 | H14 | |||||||||||
| 915*610*69 | 900 | 90 | 14.77 | 0.45 | U16 | |||||||||||

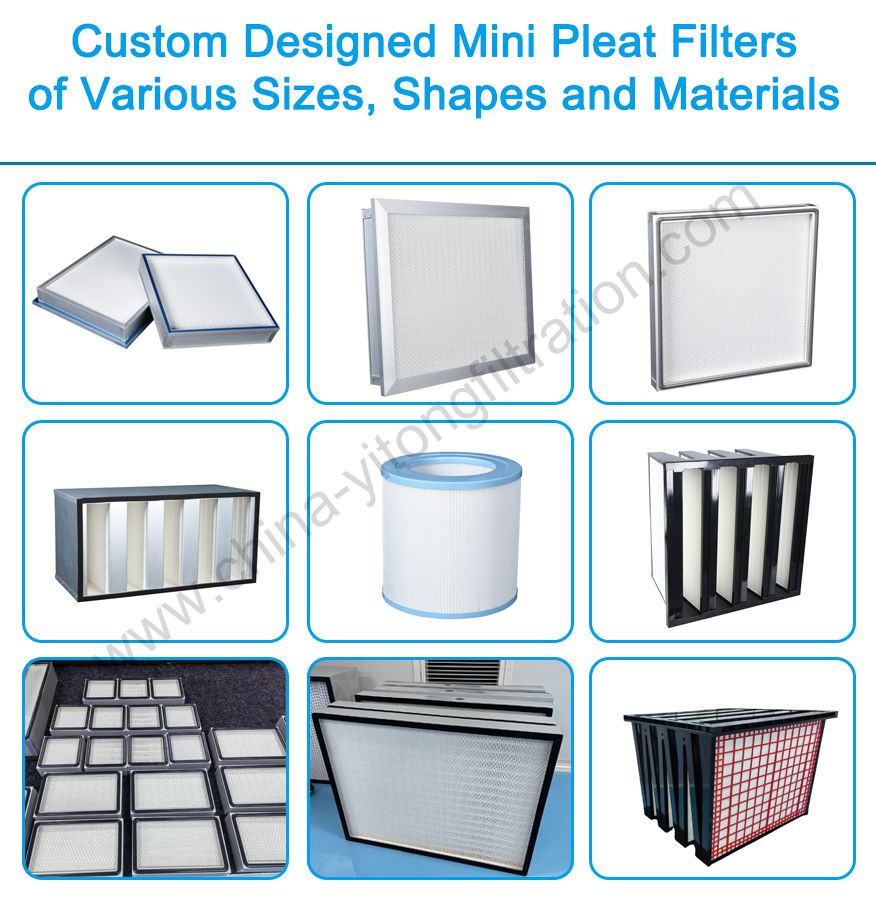

Note: More specifications can be customized
Product Benefit:
1. PTFE membrane filtration, stable performance.
2. Energy-saving, so quiet when working.
3. Cleanroom workshop with testing device.
4. Monitor working schedule in real time by buyer.
5. PU gasket & protective net in both sides.
